Structure and Basic Finishes

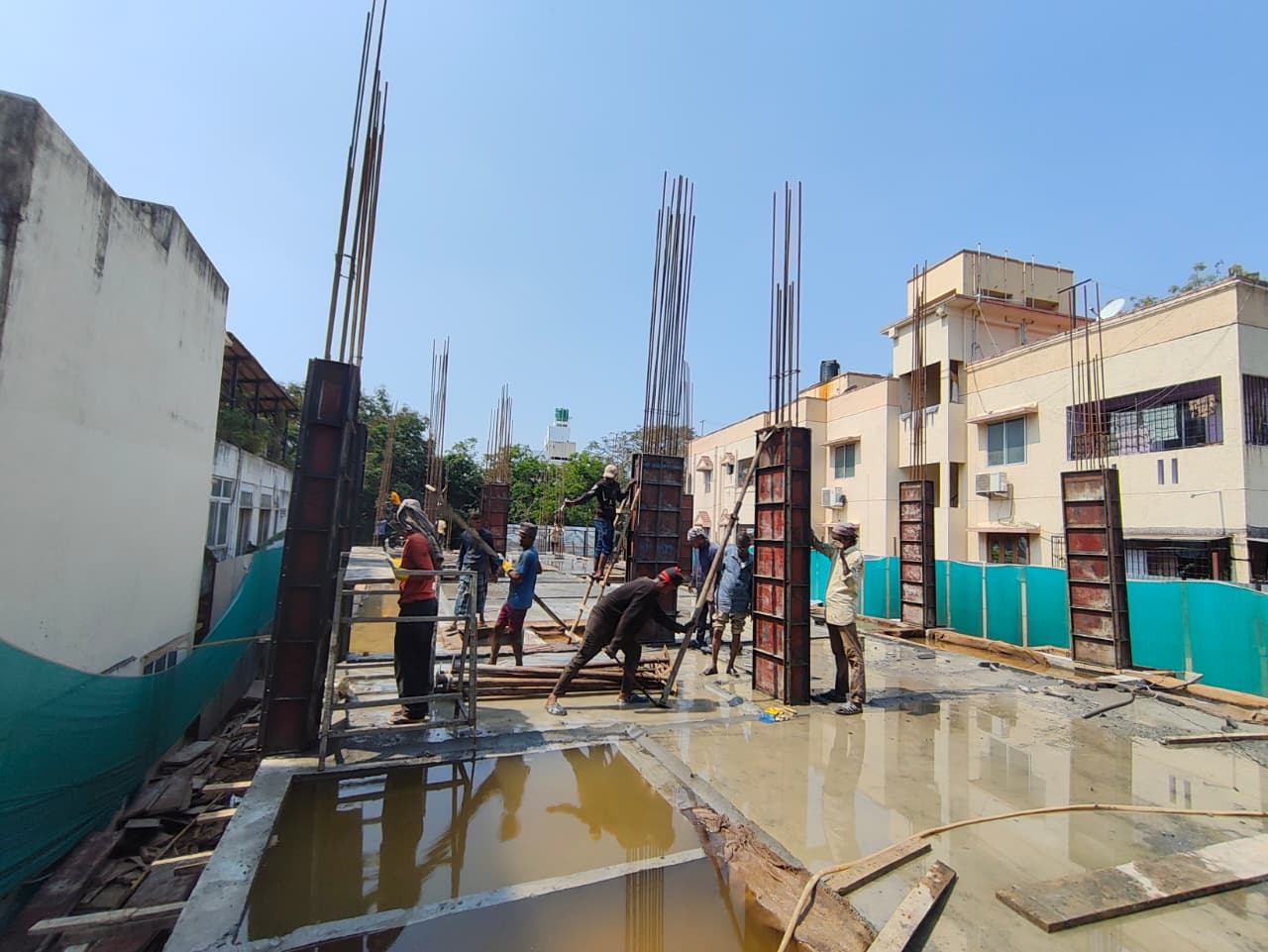

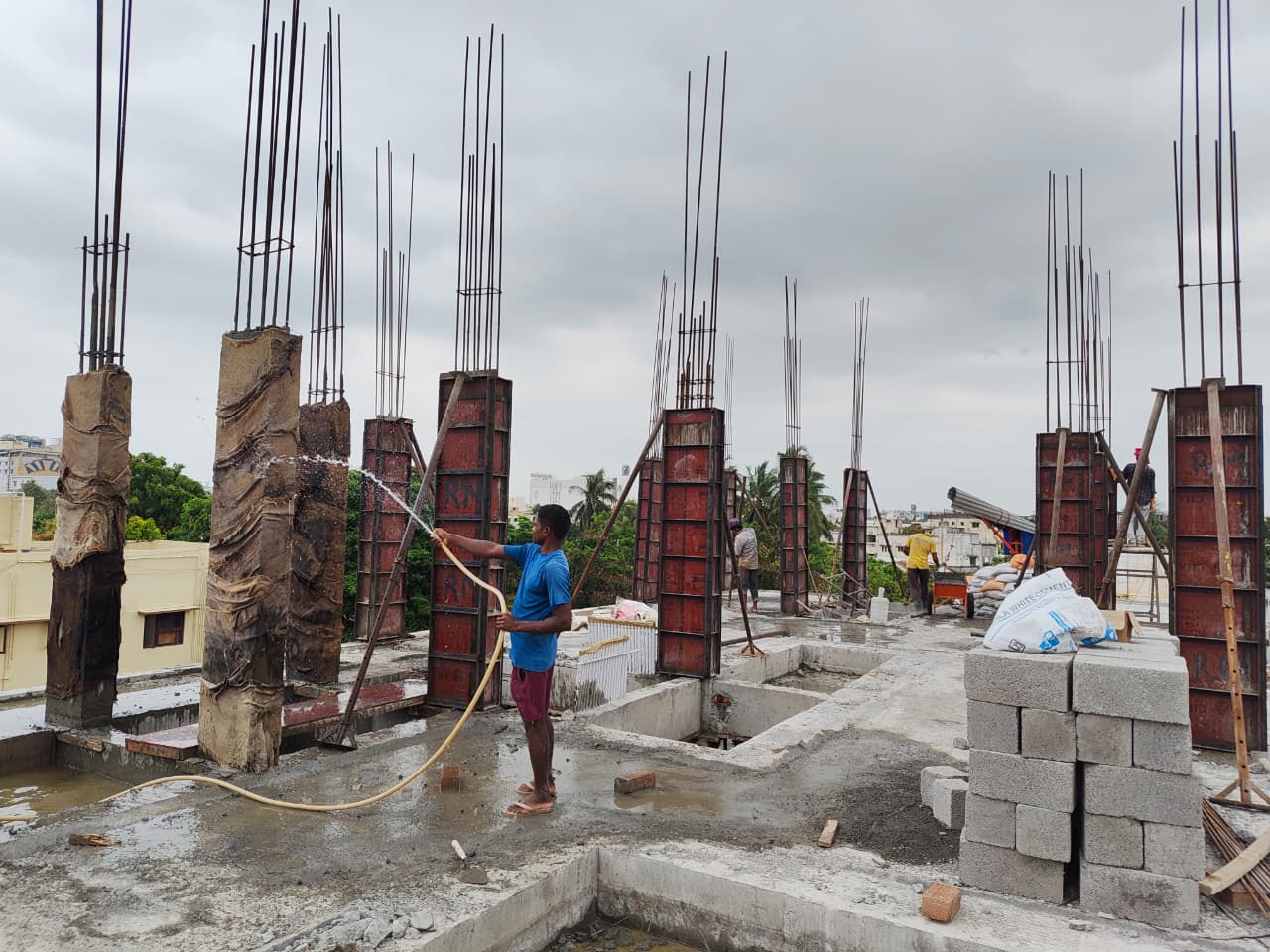

• RCC Framed Structure with high quality Bricks/AAC blocks for external and internal partitions, plastered and finished with cement paints for external.
• Internal Painting with Plastic emulsion internally after application of two Coats of Putty and Primer. The final coat will be roller finished. Paint will be Asian/Jotun or equivalent. Owner to choose colors out of options provided by Harmony
• The Height of each floor will be 10 feet maximum so the distance between the finished floor level and the finished inner roof level will be about 9’7”.
• The Lintel Level will be 7 feet above the finished floor level.

Flooring/Stair Case

• Vitrified Premium Ceramic 3’ X 3’ for Flooring except Balconies which will have Anti-Skid ceramic flooring (1 X 1 Feet Dimension) – (Kajaria/Johnson/NITCO or other brand in consultation with)
• Staircases and Lobbies will be laid with 20mm thickness Granite Slabs.  Stainless Steel railing will be provided for the Staircases.

Doors

• Polished teak wood door panel and frame for main entrance with 40 mm thick Veneered shutters. Width of the door opening will be 7’ X 3’6’’. Main door will have appropriate hardware such as Godrej Ultra Locks, Heavy Duty Hinges etc.
• All Internal Doors will be provided with Teak wood frames with suitable hinges, tower bolts and good quality locks.
• Flush doors for Internal Doors of size 7’X3’, Water Resistant Wooden Doors for Toilets with good quality locks and hard ware.
• The width of the door openings will be 3 feet for all internal doors except for Toilet Doors which shall be 2’6’’.
• One No French Door will be provided at appropriate location

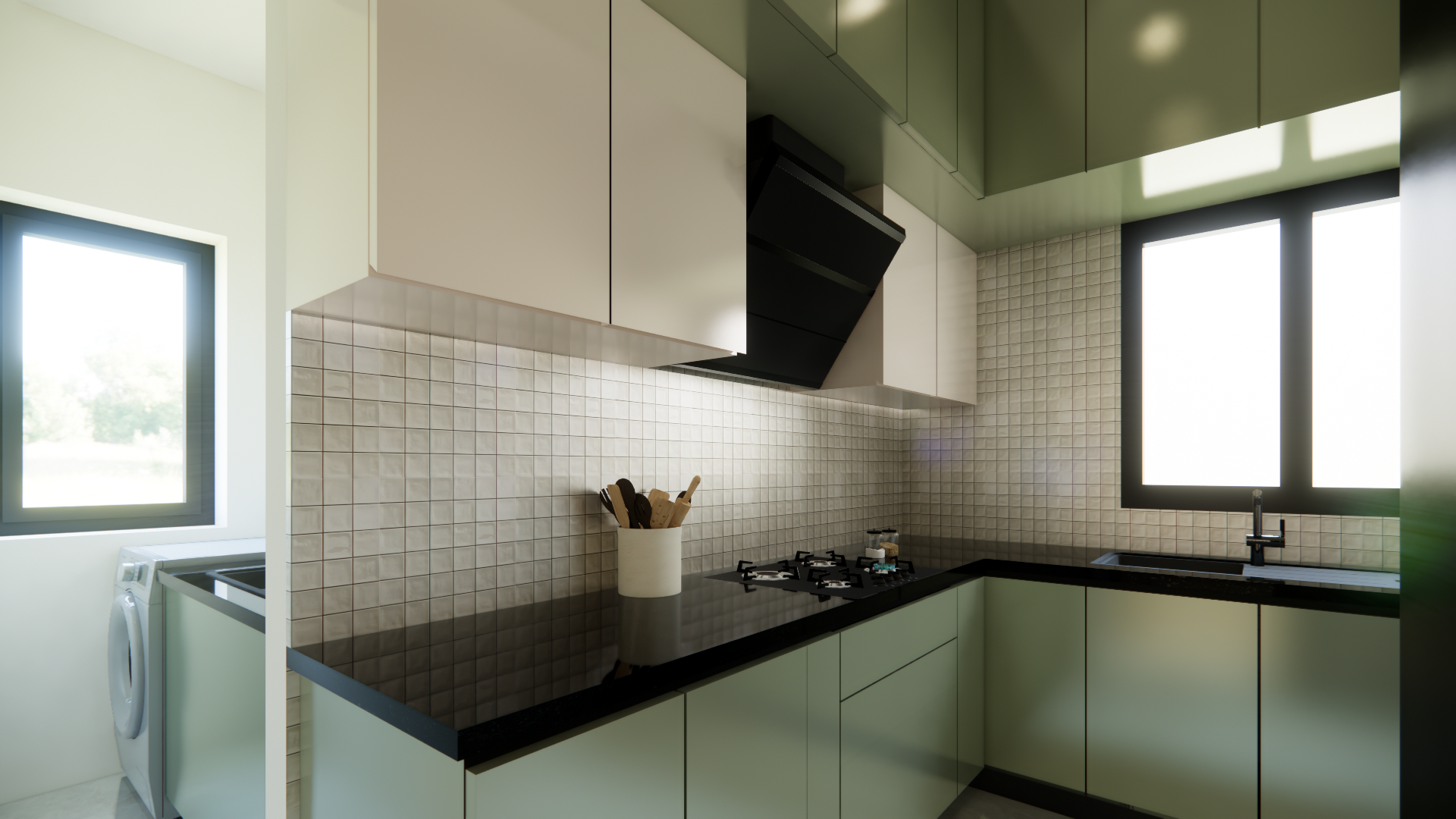

Kitchen

• Granite (Jet Black) Platform 2 Feet Wide for Kitchen Counter for a minimum running length of 15 feet with Stainless Steel Sink with Drain board of dimensions1000 mm X 600 mm of Carysil or equivalent make.
• The Kitchen Platform Provisioning will accommodate the Sink/Cooking Stove/All Appliances comfortably.
• Electric Point for chimney.

Toilets

• Western Style WC in all Bathrooms. Bathroom Fixtures will be from TOTO/Kohler / American Standard or other brand in consultation with the Committee in case of non-availability.
• Suitable Color Design Glazed tiles of RAK/Somany/Kajaria/NITCO make or equivalent for full height of wall and flooring.
• Each bathroom with Mixer unit shower, Double tap for bucket & Health Faucet near EWC.
• Geyser with hot & cold water provision will be provided in all Bathrooms.
• CP Fittings to be of Jaquar Florentine /Kohler make or other brand in consultation with the Committee in case of non-availability.
• All tap off points for wash basin tap, Geyser water point, etc. through angle cock.

Water Supply

• Deep Bore Well for Ground Water
• Two compartment Underground Sump of capacity 12,000 litres for both metro water and ground water storage.
• Ground Water will be tested and appropriate water treatment /filtration system would be installed based on the test results.
• 1 No RCC Overhead Water Tank will be installed on the terrace of capacity 12000 Liters. It will be of two compartments to cater for storage of metro water (for Kitchens) and treated ground water (For all other areas). Piping system cross connections will also be provided to enable interchangeability or common use of Metro and or bore well water.

Electrical

• 3 Phase Electric Connections.
• 3Phase X 10/30amp power supply meter with ELCB. Individual 3Ph DB inside each flat with lighting and power circuits segregated.
• Multi-core high quality copper wiring in concealed PVC conduits with MCB and recessed switches.
• Finolex wiring or equivalent makes multi strand copper with 1.5 sq.mm for 5A circuits and 2.5 sq.mm. For 15A power circuits.
• Modular plated Switches to be provided of Anchor Roma/Siemens or equivalent as per the table shown below.
